Aluminium Veneer Curtain Wall – Facade Cladding System | Shengxin

Aluminium Veneer Curtain Walls answer a specific facade problem: how to achieve the clean, modern appearance of a curtain wall when the building structure cannot support a fully independent facade system. A veneer curtain wall is a non-structural cladding system — the aluminium panels are fixed to a concealed sub-frame that is anchored to the existing building wall, rather than spanning between floors as a traditional curtain wall does. This makes it the preferred solution for refurbishment projects, over-cladding of older facades, and buildings where the structural frame was not designed for a suspended facade.

The visual result is nearly indistinguishable from a conventional curtain wall. Panels are available in large formats with tight, consistent joints, creating the same seamless elevation that architects specify for new buildings. The concealed fixing system means no visible screws or brackets interrupt the surface. Panel edges can be interlocked, open-jointed, or expressed with shadow gaps depending on the design intent. The sub-frame is engineered to accommodate thermal movement, building settlement, and the specific tolerances of the existing wall, ensuring the veneer system performs reliably over decades.

Shengxin has over 30 years of aluminium extrusion expertise and manufactures veneer curtain wall systems entirely in-house, including the panels, the sub-frame extrusions, and the fixing brackets. This vertical integration means every component is designed to work together, with one quality system and one point of responsibility. For fully structural facade systems, see our curtain wall profile range.

Features & Benefits

• Non-structural cladding solution: The veneer system is carried by the existing building wall, making it suitable for projects where a suspended curtain wall is not structurally feasible.
• Curtain wall appearance: Large-format panels with tight joints and concealed fixings recreate the clean, seamless aesthetic of a conventional curtain wall facade.
• Ideal for refurbishment and over-cladding: Existing buildings can be transformed with a modern aluminium facade without major structural intervention, improving thermal performance and weather resistance at the same time.
• Accommodates building movement: The sub-frame is engineered with slotted connections and thermal breaks to absorb movement between the veneer system and the existing structure.
• Durable architectural finishes: PVDF coating to AAMA 2605, powder coating to AAMA 2604, or anodizing to Qualanod standards — all applied in-house with documented performance.
• Lightweight and non-combustible: Aluminium veneer panels add minimal dead load to the building while achieving Class A1/A2 fire classification per EN 13501-1.

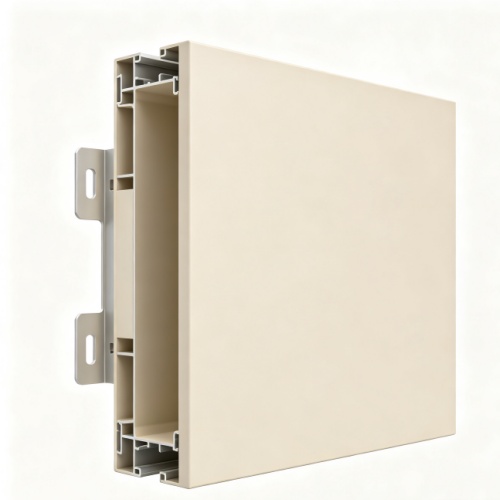

Veneer Panel Types & Fixing Systems

Select the panel format and fixing method that suits your facade design and existing wall condition.

All fixing systems include provision for thermal movement and are engineered to suit the specific substrate condition of your existing wall.

Technical Specifications

These veneer systems complement our broader aluminum wall panels range, which includes solid, perforated, and bespoke panel formats for new-build and refurbishment applications.

Applications of Aluminium Veneer Curtain Walls

• Building refurbishment and over-cladding: Existing facades can be transformed with a modern aluminium veneer, improving appearance, weather resistance, and thermal performance without structural reinforcement.
• Concrete or masonry buildings: Where the existing wall is solid and load-bearing, a veneer system provides the curtain wall aesthetic without requiring a self-supporting facade structure.
• Retail and commercial frontages: Veneer curtain walls create clean, branded elevations for shops, showrooms, and office entrances, with large panels that minimise joint lines.
• Residential apartment upgrades: Older apartment blocks can be re-clad with aluminium veneer panels to improve energy performance, reduce maintenance, and modernise the building's appearance.
• Industrial and warehouse facades: Large-format veneer panels provide a durable, low-maintenance exterior for industrial buildings where full curtain wall systems would be impractical or over-specified.

Customisation & Supply Options

Why Choose Shengxin for Aluminium Veneer Curtain Walls?

A veneer curtain wall is only as good as the interface between the new facade and the existing building. Shengxin has over 30 years of aluminium manufacturing experience and produces the panels, sub-frame extrusions, and fixing brackets entirely in-house. This means we can engineer the complete system to suit your specific substrate condition, rather than forcing a standard kit to fit an irregular wall. With $120 million in assets, 35 extrusion lines, and exports to 97 countries, we have the capacity and experience to deliver veneer facade projects of any scale.

Related Facade Solutions: For structural curtain wall systems, see our aluminium facade panel range. For high-rise applications, consider our high-rise facade profiles. 5 container loading platforms ensure on-time dispatch.

Aluminium Veneer Curtain Wall FAQ

Custom Aluminium Veneer Curtain Wall Solutions

If your facade project requires a custom veneer system, specific panel dimensions, or a sub-frame engineered for an irregular existing wall, Shengxin's custom fabrication service can design and manufacture the complete system to your exact requirements.

How It Works:

1. Send your design — architectural drawings, facade layout, and existing wall information.
2. Our engineers review — we assess the substrate condition, design the sub-frame, and suggest optimisations.
3. Receive a quotation — including panel fabrication, sub-frame extrusion, finish cost, and lead time.
4. Approve a sample — we produce a sample panel with your finish for approval.
5. Full production — consistent quality across every panel and sub-frame component, delivered on schedule.

⚠️ Important Note: All panel images and dimensional drawings on this page are for reference only. Final dimensions, joint details, finishes, and sub-frame specifications will be confirmed based on your approved production drawings and site survey. Please contact our engineering team to discuss your specific requirements before placing an order.

Please note: The production timelines discussed are typical estimates based on smooth design approvals and current scheduling. Actual lead times may be longer if design changes are required, multiple sample iterations are needed, or production capacity is temporarily at high demand. Your dedicated project engineer will provide updated timelines at each stage, and final delivery dates will be confirmed in your order confirmation.
