The U Profile Aluminium, also referred to as a U-channel or U-section, is a fundamental structural shape in the aluminium extrusion family. With a base and two parallel legs forming a U-shaped cross-section, this profile offers a recessed channel ideal for capturing panels, guiding sliding components, protecting edges, or serving as a lightweight structural member. Its open design allows easy insertion of glass, boards, or other materials, making it a favourite among fabricators, builders, and product designers worldwide.

Our U-profiles are extruded from 6063-T5 or 6061-T6 aluminium, selected based on the application's strength and surface finish requirements. 6063 is preferred for architectural and decorative uses due to its excellent extrudability and anodizing response, while 6061 provides higher mechanical strength for load-bearing and structural applications. Every U-channel is produced in-house on our 35 extrusion lines, ensuring tight dimensional control — consistent leg height, base width, wall thickness, and straightness across the entire production batch.

Shengxin stocks a wide range of standard U-profile sizes and can also custom-extrude non-standard dimensions to match your project's exact specifications. Surface finishes include mill, anodized (clear, black, bronze), and powder coated in any RAL colour. Common complementary aluminium extrusions such as angles, flat bars, and square tubes are available from our Standard Shape Profiles category, allowing single-source supply for your entire fabrication needs.

Features & Benefits

• Versatile U-shape design: The channel geometry is perfect for edge protection, sliding tracks, panel framing, and cable management — a single profile serves dozens of applications.
• Excellent corrosion resistance: Aluminium naturally resists rust and atmospheric corrosion. For harsh environments, anodized or powder coated finishes add further decades of protection.
• Lightweight and easy to work: Weighing roughly one-third of an equivalent steel channel, U-profiles are easier to handle, cut, drill, and install — reducing labour effort and structural dead load.
• Consistent dimensional accuracy: Extruded to EN 755 and EN 12020 standards, each U-profile maintains uniform leg height, base flatness, and wall thickness for reliable fit in assemblies.
• Available in multiple alloys: 6063-T5 for architectural and aesthetic applications; 6061-T6 where higher tensile and yield strength is required for structural frames and brackets.
• Ready-to-assemble options: We offer cut-to-length, drilling, tapping, and mitre cutting services so your U-profiles arrive ready for immediate integration into your project.

Standard U Profile Sizes (Commonly Produced)

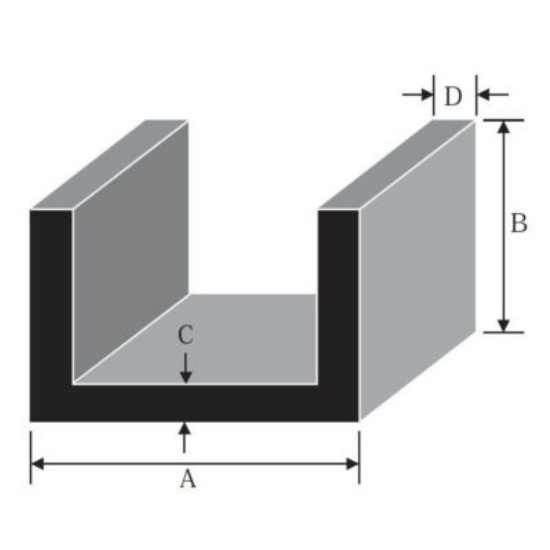

These are representative standard sizes. Custom dimensions are produced to order with short lead times. Dimensions shown as Base Width x Leg Height x Thickness.

Not seeing your required dimension? We custom-extrude U-profiles with base widths up to 550 mm and leg heights up to 300 mm. Contact us with your drawing.

Technical Specifications

Typical Applications of U Profile Aluminium

• Edge protection and trim: U-channels are widely used to cap and protect the edges of panels, boards, and glass sheets, providing a neat, finished appearance while preventing chipping.
• Sliding tracks and guides: The open channel acts as a smooth, low-friction track for sliding doors, drawer systems, window sashes, and linear motion guides in automation equipment.
• Cable management and conduit: U-profiles neatly route and protect wires, cables, and small pipes along walls, under desks, or inside electrical enclosures — open design allows easy access.
• Framing and support structures: Used as vertical studs, horizontal rails, and perimeter framing in partition walls, display booths, shelving, and lightweight modular structures.
• Architectural details and reveal trims: Anodized U-profiles create clean shadow gaps and reveals between cladding panels, ceiling tiles, and joinery elements — specified by architects for crisp lines.
• DIY and workshop fabrication: Hobbyists, model makers, and maintenance teams use standard U-channels for constructing jigs, enclosures, brackets, and repair splices — easy to cut and drill with common tools.

Value-Added Processing Options

Why Shengxin for U Profile Aluminium?

Producing consistent U-profiles — flat base, parallel legs, uniform wall thickness — requires precision die design and controlled extrusion conditions. With 29 years of experience, Shengxin combines advanced tooling, 35 extrusion lines (up to 5,500 tons), and a vertically integrated finishing department to deliver U-channels that meet exacting specifications.

Full Quality Assurance: Every order comes with mill certificates, dimensional inspection reports, and surface quality documentation. We support PPAP and project-specific quality requirements.

U Profile Aluminium FAQ

Custom Aluminium U Profile Solutions

Every project has unique requirements. Whether you need a non-standard base width, taller legs, thicker walls, or a completely bespoke U-channel profile, Shengxin's custom extrusion service delivers precision aluminium profiles engineered to your exact drawings and specifications.

How It Works:

1. Send your drawing — 2D PDF/DWG or 3D STEP/IGES file.
2. Our engineers review — we assess feasibility and suggest optimisations.
3. Receive a quotation — including die cost, unit price, and lead time.
4. Approve a sample — we extrude a trial section for your sign-off.
5. Full production — consistent quality, delivered on schedule.

⚠️ Important Note: All product images and dimensional drawings on this page are for reference only. Each custom profile is unique — final dimensions, tolerances, and surface finish will be confirmed based on your approved production drawing. Please contact our engineering team to discuss your specific requirements before placing an order.
