Product Details

A window trickle vent is a compact, adjustable slot ventilator integrated into window frames, enabling continuous passive airflow even when windows are fully closed. It is essential for modern airtight buildings to prevent condensation, mould, and stagnant air. As energy efficiency standards tighten, passive ventilation for windows has become a mandatory requirement in many regions.

uPVC window trickle vent cross-section with shutter, filter, and frame slot

Manufactured from high-grade uPVC (unplasticised polyvinyl chloride) with precision-engineered sealing profiles, Shengxin's trickle vent system combines an infinitely adjustable internal shutter with an integrated insect/dust filter. Available in 2,500 to 5,000 mm² Equivalent Area (EA) ratings, these vents ensure healthy indoor air quality without compromising energy efficiency or security. The uPVC material naturally provides excellent thermal insulation (thermal conductivity ~0.17 W/m·K), outperforming metal alternatives.

Designed for seamless integration into aluminum, uPVC, and timber window frames, our vents are tested to BS EN 13141-1 and comply with UK Building Regulations Approved Document F. They are also an ideal choice for condensation control in kitchens, bathrooms, and high-humidity environments.

Key Features of High-Performance Passive Window Vents

Feature	Advantage
High-Grade uPVC Construction	Naturally low thermal conductivity (0.17 W/m·K), excellent weather resistance, and lightweight durability for long-term performance in all climates.
Infinitely Adjustable Shutter	Manual slide control for precise airflow from fully open to completely closed, adapting to seasonal ventilation needs.
Integrated Insect & Dust Filter	Prevents ingress of insects, pollen, and dust while maintaining consistent airflow — ideal for allergy-sensitive environments.
Low-Profile Aesthetic Design	Slim external canopy blends seamlessly with modern window frames, preserving architectural sightlines without visual bulk.
Multiple EA Ratings (2,500 / 4,000 / 5,000)	Flexible airflow capacity to meet diverse room ventilation requirements — from small bedrooms to large open-plan living areas.
BS EN 13141-1 Certified	Independently tested for airflow performance, weather tightness, and acoustic reduction, ensuring reliable regulatory compliance.
Universal Frame Compatibility	Fits aluminium, uPVC, and timber frames with tool-free installation clips, drastically reducing on-site labour time.
Acoustic & Thermal Insulation Options	Optional acoustic attenuation linings and enhanced thermal inserts available for projects with strict noise or energy performance criteria.

BS EN 13141-1 certificate for Shengxin window trickle vents

BS EN 13141-1 Performance Data for Window Ventilators

Under UK Building Regulations Approved Document F, habitable rooms require a minimum of 8,000 mm² EA, kitchens 13,000 mm² EA, and bathrooms 4,000 mm² EA (in addition to mechanical extract). Our BS EN 13141-1 compliant ventilators meet these standards efficiently.

Equivalent Area (EA) Options

Model	EA (mm²)	Rout Height	Typical Use
Standard	2,500	10 mm	Small rooms / single vents
High-Flow	4,000	13 mm	Bedrooms, living rooms, bathrooms
Premium	5,000	13 mm	Large open-plan areas / commercial spaces

Acoustic & Weather Performance

Parameter	Performance
Sound Reduction (Vent Open)	28 – 30 dB (Dn,e,w)
Sound Reduction (Vent Closed)	42 – 45 dB (Dn,e,w)
Water Tightness (Closed Position)	Up to 650 Pa
Water Tightness (Open Position)	Up to 100 Pa
Air Leakage (Closed @ 50 Pa)	Less than 15% of rated airflow
Operating Temperature Range	-20°C to +80°C (suitable for extreme climates)

Technical Specifications – uPVC Trickle Vent Dimensions & Materials

Base Material	High-Grade uPVC (Unplasticised Polyvinyl Chloride)
Thermal Conductivity	~0.17 W/m·K (natural thermal barrier)
Finish Options	White, Anthracite Grey, Cream, or custom RAL colour-matching (painted to order)
Custom Length	Bespoke up to 2,500 mm (precision cut to ±0.5 mm)
Rout Height (Slot)	10 mm or 13 mm (custom rout heights available on request)
Glazing Compatibility	20 mm / 24 mm / 28 mm (compatible with double and triple glazing)
Filter Type	Standard insect mesh (optional: fine dust PM2.5 filter, acoustic attenuation lining)
Sealing Material	EPDM (standard) / Silicone (for high-temperature or UV-exposed environments)
Standards Compliance	BS EN 13141-1:2019, EN 14351-1, EN 12608 (uPVC material standard)

Shengxin uPVC trickle vent production line with extrusion equipment

Common Application Scenarios for Retrofit & New Build Vents

Residential New Builds – Compliant background ventilation for modern homes, satisfying UK Building Regulations AD-F.
Retrofit & Window Replacement – Ideal retrofit trickle vent solution for upgrading existing aluminium, uPVC, or timber windows without replacing entire frames.
Passive House & Low-Energy Projects – Controlled airflow with minimal thermal bypass, preserving the integrity of highly insulated building envelopes.
Commercial Office & Co-Working Spaces – Maintain healthy CO₂ levels and indoor air quality in sealed, air-conditioned environments.
Educational Facilities (Schools & Universities) – Durable, low-maintenance ventilation for classrooms, libraries, and auditoriums with high occupant turnover.
Healthcare & Care Homes – Ensure continuous fresh air supply in patient rooms and nursing facilities, supporting infection prevention protocols.
High-Rise Residential Towers – Engineered to withstand high wind loads while providing essential background ventilation in sealed high-rise units.
Coastal & High-Humidity Regions – uPVC's inherent corrosion resistance makes it ideal for salt-laden coastal environments where metal vents may degrade.
Noise-Sensitive Urban Locations – Acoustic trickle vent models provide quiet ventilation near airports, railway lines, and busy traffic corridors.
Historical Building Renovations – Slim-profile vents that can be discreetly integrated into heritage window frames without altering the original architectural character.
Kitchens & Bathrooms – Dedicated condensation control vents that actively reduce moisture build-up, preventing mould growth and timber decay.

Custom Trickle Vent Options – Lengths, Colours & Filters

Shengxin offers extensive customization for window trickle vents to meet specific project specifications:

Equivalent Area (EA) Rating: 2,500 / 4,000 / 5,000 mm² or fully custom airflow specifications based on your ventilation calculations.
Profile Length & Slot Height: Bespoke lengths up to 2,500 mm with rout heights of 10 mm, 13 mm, or custom heights for unique glazing rebates.
Surface Colours & Finishes: Standard white, anthracite grey, cream, or any RAL colour via professional painting; wood-effect foils also available.
Filter Media Options: Standard insect mesh, high-efficiency PM2.5 fine dust filter, or multi-layer acoustic attenuation lining for soundproof ventilation.
Operation Mechanism: Front slide shutter, cord pull control, or rod-operated actuator for hard-to-reach high-level installations.
Sealing Gaskets: Choose between EPDM (standard, -20°C to +80°C) or high-grade silicone (-40°C to +120°C) for extreme climates.
Precision Cutting & Machining: In-house CNC cutting services for precise length tolerance (±0.5 mm), end-capping, and notch cutting for complex frame profiles.
Laser Marking & Branding: Custom logo engraving, batch codes, or specification markings directly on the profile for OEM branding.
Mounting Configuration: Surface-mounted for retrofit, glazed-in for factory-assembled units, or overframe installation for specific facade systems.
Export Packaging: Tailored packaging solutions including individual foam wrapping, plywood pallets with corner protection, and container loading plans to ensure zero transit damage.

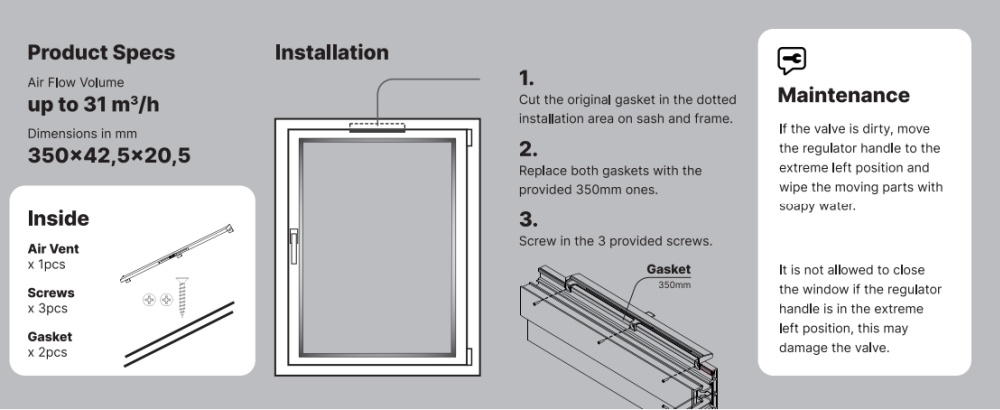

Custom uPVC trickle vent, 4000 mm² EA, with RAL finish

Why Choose Shengxin for Your Window Ventilation Solutions

With over 29 years of dedicated aluminium extrusion experience and a global export network covering 97 countries, Shengxin is a trusted sourcing partner for high‑performance window trickle vents and window system components. While our core expertise lies in aluminium profiles, we offer these premium uPVC trickle vents as a complementary solution for our clients' complete window hardware needs. Our 35 extrusion lines (600–5,500 tonnes) and in‑house surface finishing – including 3 anodizing lines, 3 powder‑coating lines, 1 PVDF line, and 4 wood‑grain lines – ensure we can supply both aluminium frames and compatible uPVC accessories with consistent quality. All production complies with EN 755, EN 12020, and Qualanod standards, and our 5,000‑tonne warehouse and 5 container‑loading platforms guarantee rapid FCL shipment. We provide one‑stop customisation from extrusion to CNC machining, ensuring reliable quality and on‑time delivery for retrofit and new‑build ventilation projects worldwide.

Window Trickle Vent FAQs – Compliance, Installation & Performance

Q1: Are trickle vents mandatory under UK Building Regulations?
Yes. Under Approved Document F, most new dwellings and many replacement window installations require background ventilators. From 2025, standards have become stricter with mandatory performance testing to BS EN 13141-1.

Q2: What Equivalent Area (EA) do I need for each room?
Habitable rooms (living rooms, bedrooms) require 8,000 mm² EA (e.g., two 4,000 EA vents). Kitchens require 13,000 mm² EA, and bathrooms require 4,000 mm² EA in addition to mechanical extract fans.

Q3: Can I install these on existing windows (retrofit)?
Absolutely. Our universal uPVC vent design fits aluminium, uPVC, and timber frames with tool-free locking clips, making retrofit quick and cost-effective without compromising the window structure.

Q4: How much sound do they block?
When fully open, they reduce noise by 28–30 dB; when closed, up to 42–45 dB. Optional acoustic filter linings are available for projects requiring superior soundproof ventilation.

Q5: Do trickle vents waste energy?
No. The uPVC material has a naturally low thermal conductivity (~0.17 W/m·K), providing a thermal barrier that minimises heat loss while allowing background airflow.

Q6: Is there a minimum order quantity (MOQ)?
No strict MOQ. We welcome trial orders from 10 pieces (pricing adjusted for small volumes). Bulk orders for large developments enjoy competitive volume discounts and priority production scheduling.

Q7: Can I get custom lengths and RAL colours?
Yes. We offer bespoke lengths up to 2,500 mm and any RAL colour to match your window frame specifications. Our in-house painting lines ensure colour consistency across the entire batch.
